Description

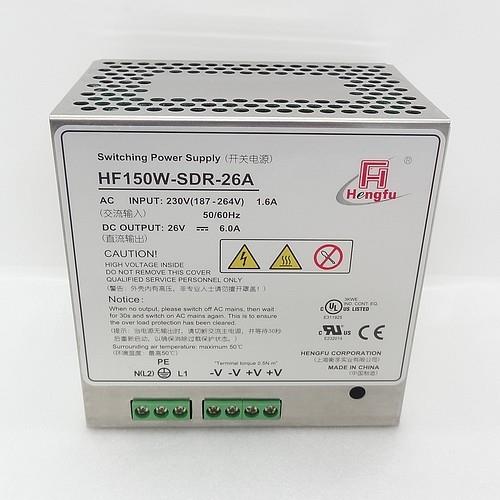

Heng Fu 150W-SDR-26A Replacement Spare Power Supply for Schindler Lift Systems.
A genuine replacement part for Schidnler elevators running on 26V / 6A supply.
Features:
Installed on DIN rail TS35/ 7.5 or 15
Approvals: UL508 listed, UL/ CUL/ CE
High reliability, compact design
Protections: overload/ over voltage/ short circuit
5 years limited warranty
lF615DRA 108.4 x 74.2 x 109(mm)
|
AC input voltage range |
187~264VAC |
|
Input frequency |
50/60Hz |
|
Inrush current |
cold start, 40A/230V |
|
Input leakage current |
๏ผ1mA/ 230VAC |
|
Line regulation (full load) |
≤±0.5% |
|
Output voltage adjust range |
±10% |
|
Output overload protection |
110~130%, delay shutdown, re-power on to recover |
|
Output over voltage protection |
115~150%, shut off, re-power on to recover |
|
Withstand voltage |
I/P -O/P: 3.0KVAC/1min I/P -F/G: 1.5KVAC/1min O/P-F/G: 0.5KVAC/1min |
|
Rise time |
50ms@full load (typical) |
|
Hold up time |
20ms@full load (typical) |
|
Operating temperature |
-20โ~+50โ |
|
Safety standards |
UL508, UL60950, EN60950 approved |
|
EMC standards |
meet EN55022 classB, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
|
Cooling method |
convection |
|
Connection |
3P/ 6.35mm pitch 4P/ 6.35mm pitch, screw terminal block |
|
Weight |
0.67kg/pcs |
