Description

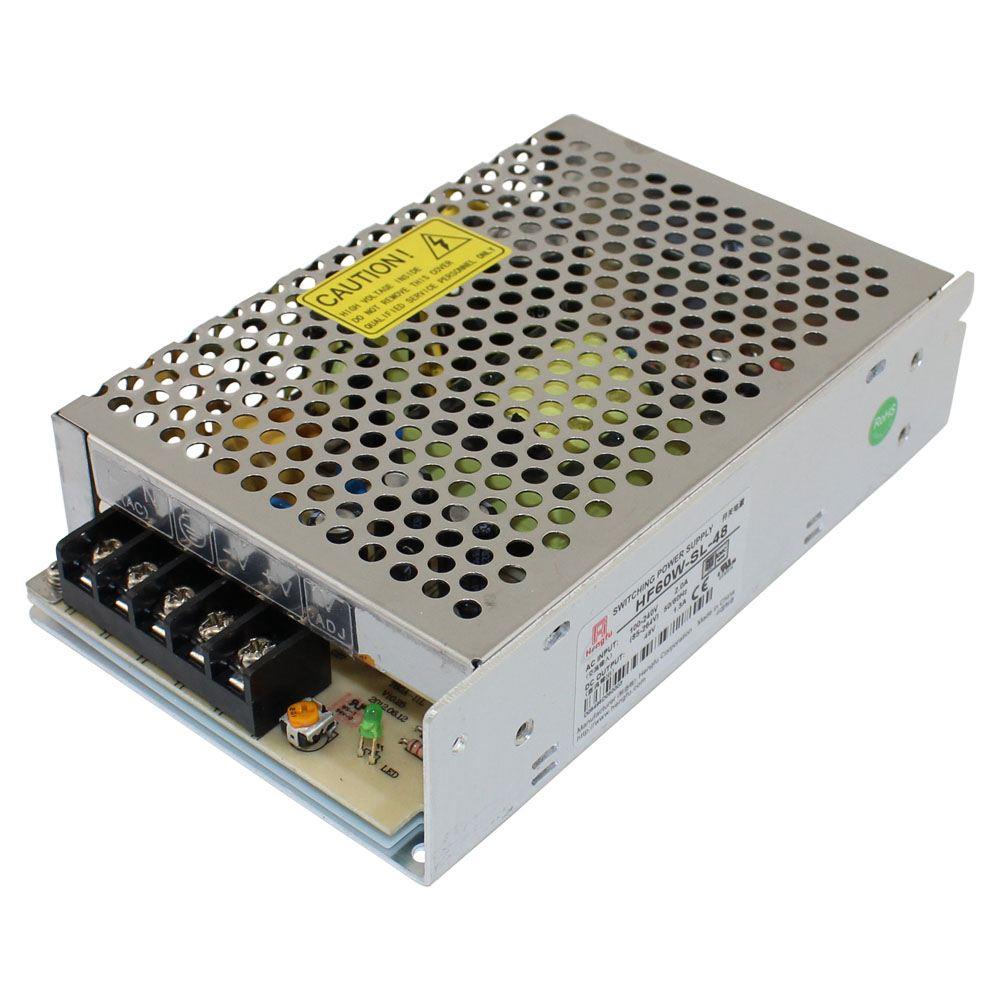

48V 1.3A 60W PSU
Highly reliable, universal AC input/full range single output power supply. UL and CE approved. 100% full load burn-in tested.
Overload / over-voltage / short circuit protection. 2 year manufacturerยs warranty. Dimensions: 6.4ย x 3.92ย x 1.56″. Complies with RoHS Directive.
Specification
- AC Input Voltage Range: 85-264VAC (120-370VDC)
- Input Frequency: 47-63Hz
- Inrush Current: Cold Start, 20A/115V, 40A/230V
- Input Leakage Current: <0.7mA/230V
- Line Regulation (Full Load):
- Output Voltage Adj. Range: +/- 10%
- Output Overload Protection: 110-150%
- Output Over Voltage Protection: 115-150%
- Withstand Voltage: I/P-O/P:3.0KVAC/1min; I/P-F/G:1.5KVAC/1min; O/P-F/G:0.5KVAC/1min
- Rise Time: 50ms@full load (typical)
- Hold Up Time: 20ms@full load (typical)
- Operating temp.& humidity: -10degreesC to 50degreesC (14degreesF – 122degreesF), 20%-93%RH (non-condensing)
- Storage temp.& humidity: -20degreesC to 85degreesC (-4degreesF – 185degreesF), 20%-93%RH (non-condensing)
- MTBF: 100,000 hours
- UL Ref. Number: E258719
- Safety Standards: GB4943, UL80950, EN60950
- EMC Standards: GB9254, EN55022 classB, EN55024, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
- Cooling Method: Convection
